CHANLONG MANUFACTURING AND TRADING

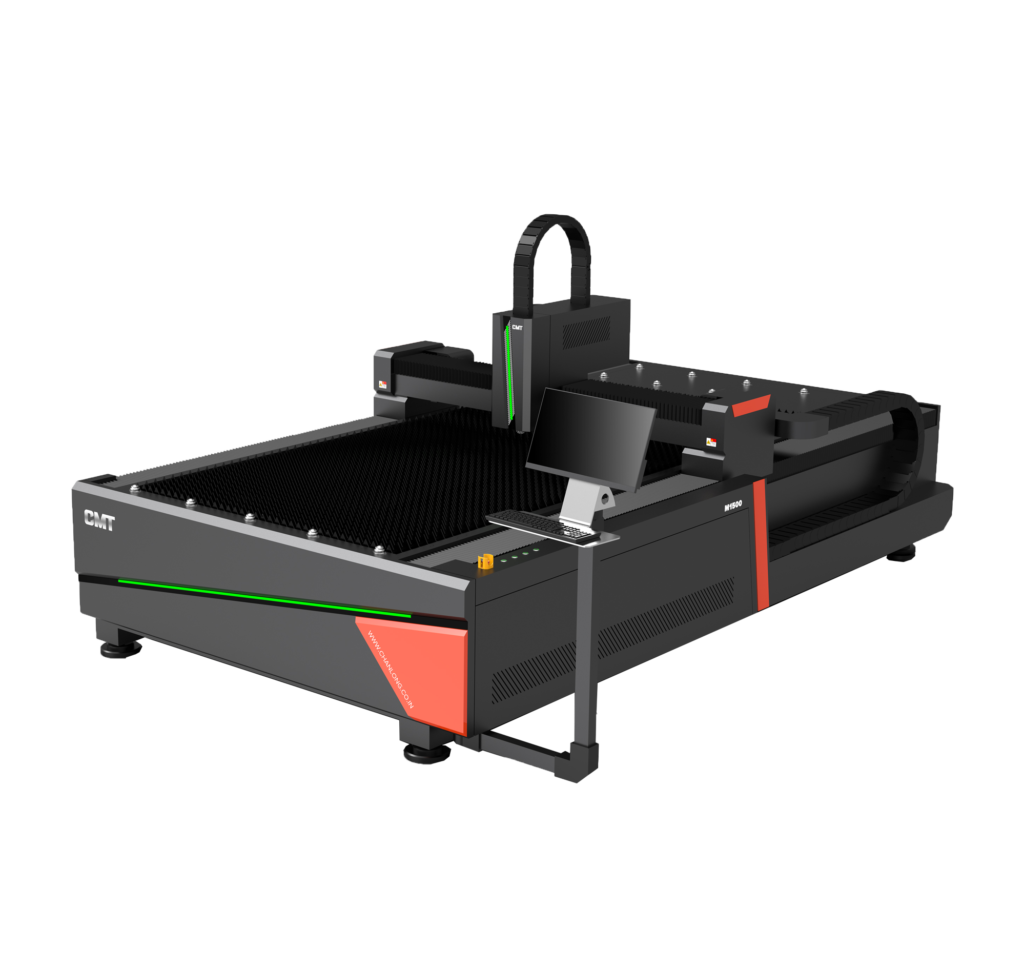

CMT FIBER LASER MACHINE (1500W)

Fast speed, High precision, low power consumption!

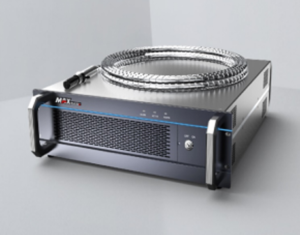

  1. MAX Laser Generator
  2. 100000 hours service life
  3. High Electro-optical conversion efficiency
  4. Altitude stress-resiting capacity
  5. The best quality and the best stable laser generator in china.
  6. High conversion rates , high work efficiency

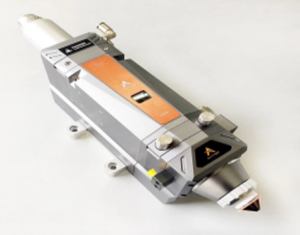

A cutter auto focus cutting head

auto focus cutting head can switch cutting freely between different thick material based on software memory, save more time on manual adjust focus.

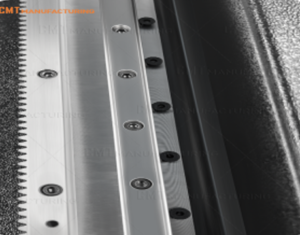

The rack uses high-precision grinding racks, and now many devices within 3000 watts use fine-milled racks in order to save costs. Guide rail positioning device, this positioning device is standard on all 6000 watts or above or some high-precision machine tools. This positioning device is to ensure the accuracy of the machine

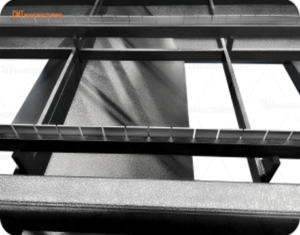

Separation structure design of machine chassis and table to ensure long-term laser operation and prevent deformation of the machine tool. 2 Another feature of this structure is that the levelling error between the table and the machine chassis is less than 5 mm, which ensures improved machining accuracy and prolongs the service life of the equipment

CMT fiber laser cutting machine is widely used in advertising signages and industrial economical choice. like furniture, kitchen, lighting industry etc.

It can be with 1500-3000W laser generators as well.

Fiber laser cutter now gradually replace plasma as a New CNC metal fabrication tools for metal steel sheet plate like iron, stainless steel

Specification

Laser power                  : 1500W

Max. cutting area          : 1500*3000mm

The fast running speed  : 30m/min-60m/min

Servo Motor & Drive      : Delta

Transmission system      : Rack & Pinion

Pinion Cutting Head       : Acutter

Machine power               : ≤12.6KW

Control System               : AU3TECH Laser

Source                          : MAX

Machine bed                   : A3 steel material 2 tons

Fiber laser cutting machines have become the cornerstone of precision and efficiency in the signage industry. As businesses strive to make a lasting impression through visually striking signage, these cutting-edge machines pave the way for limitless creativity and design possibilities. In the journey of crafting signs that captivate and communicate, fiber laser cutting machines stand as technological beacons, illuminating the path toward a new era of precision and brilliance in the world of signage fabrication.
